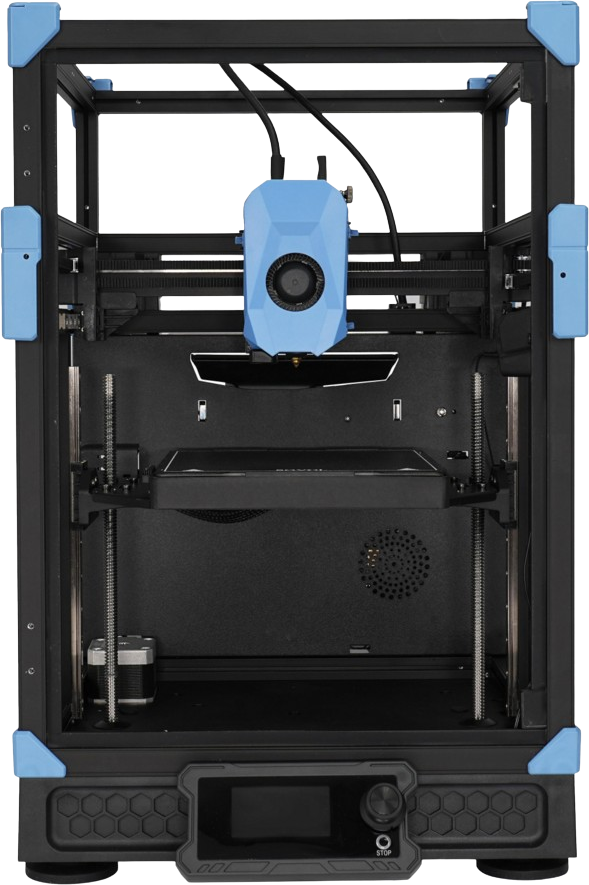

Sovol Zero
Open source FDM printer for speed without compromise
Features & Advantages
- Build volume 152.4 x 152.4 x 152.4
- Speed up to 1200 mm/s
- CoreXY kinematics
- Auto-levelling 3.0
- AC heating bed up to 120 °C
Item no.: SOV-500101101125, Content: 1 pc
Product information & technical details
- Item no.: SOV-500101101125
- Manufacturer No.: 500101101125
- Manufacturer: Sovol
- Content: 1 pc
- Product type: 3D Printers
- Nozzle shape: Others
- Assembly: Assembly kit
- Printing Technology: FFF - FDM - LPD
- Printer Display: LCD Display
- Supported operating systems: Windows (7+), Mac OS X (10.7+)
- Extruder type: Direct Drive Extruder
- Number of extruders: Single
- Supported Formats (Slicer): STL, OBJ
- Heated build platform: Yes
- Heated chamber: No
- Filament Diameter: 1,75 mm
- Build volume: 152.4 x 152.4 x 152.4 mm
Description
Do you want to print faster than your shadow can follow you? Then the Sovol Zero is your new best friend! With an incredible printing speed of 1200 mm/s, you can bring your ideas to life in turbo speed - precise, reliable and so efficient!
CoreXY - The brains behind the speed
Fewer moving parts, compact design and ultra-fast acceleration of up to 40000 mm/s² - the CoreXY kinematics ensure clean, fast movements without wobbling.
- max. speed: 1200 mm/s
- max. acceleration: 40000 mm/s²
- max. flow rate: 50 mm³/s
Linear guides on all axes - for smooth movements
Thanks to XYZ linear rails, the print head glides smoothly through the installation space. Less clearance, less vibration, better print quality. And the whole thing is also durable and corrosion-resistant.
Auto-Levelling 3.0 - the next generation of levelling
The new Auto-Levelling 3.0 combines eddy current technology with pressure sensors. In other words: no more fiddling around, just a cleanly measured print bed that automatically aligns itself perfectly and guarantees precise first layers!
AC heated bed
The AC heating bed reaches up to 120 °C, making it perfect for demanding filaments. Thanks to the fast heat-up time, you'll be ready to go in record time. And with the integrated overheating protection, you are always on the safe side.
Further features:
- Open source for full control and maximum freedom,
- Integrated temperature sensor monitors the chamber temperature in real time,
- Clever air filtration system reliably filters fine dust, VOCs and other emissions,
- Silicone damping pad for less vibration,
- Built-in camera provides you with live monitoring via Obico, creates cool time-lapse recordings and documents every printing process,
- In addition to standard filaments such as PLA and PETG, demanding materials such as ABS, nylon or PC can also be processed without any problems,
- Adaptive Area Detection, Pressure Advance & Input Shaping.
Technical specifications:
Build volume | 152.4 x 152.4 x 152.4 mm |
Nozzle | 0.4 mm brass |
Max. nozzle temperature | 350 °C |
Extruder | Dual drive planetary gear, 1:5.2 |
Heating element | Made of ceramic |
Build plate | Double-sided, textured PEI |
Max. heating bed temperature | 120 °C |
Max. printing speed | 1200 mm/s |
Max. acceleration | 40000 mm/s² |
Max. flow rate | 50 mm³/s |
